Seeking
for high-fidelity sound reproduction from your soundbar?
Audiophiles will be amazed with this

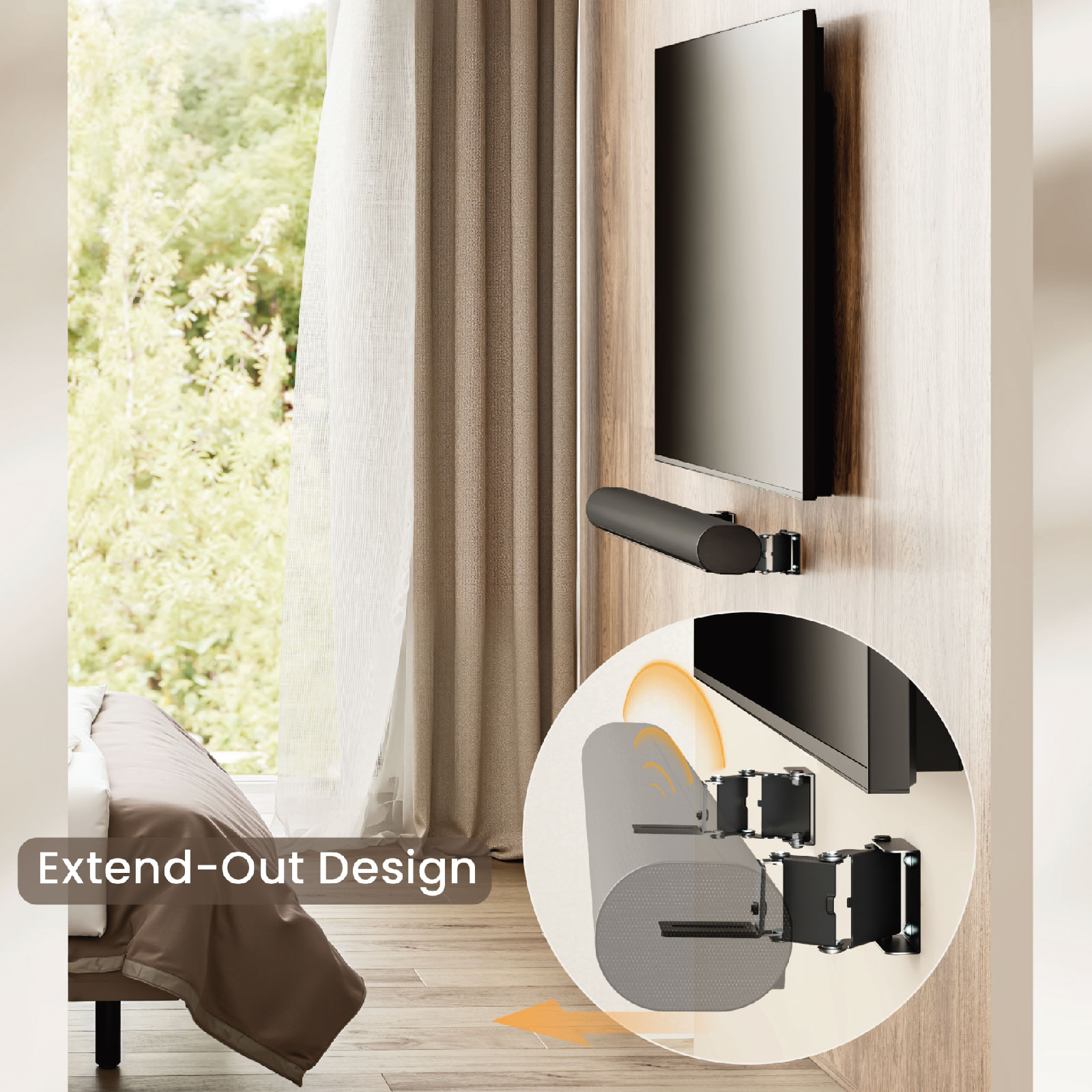

innovative soundbar wall mount which features a unique extend-out structure that
elevate the soundbar position by avoiding sound obstructions from the TV and
cabinet. Besides, the availability of swivelling adjustment gives extra
flexibility on positioning the soundbar at a more precise direction. Therefore,
for those Dolby Atmos up-firing soundbars, user can expect an immersive and
distortion-free sound.
It is compatible with most soundbars of
either back or bottom holes mounting.

PRODUCT
HIGHLIGHTS

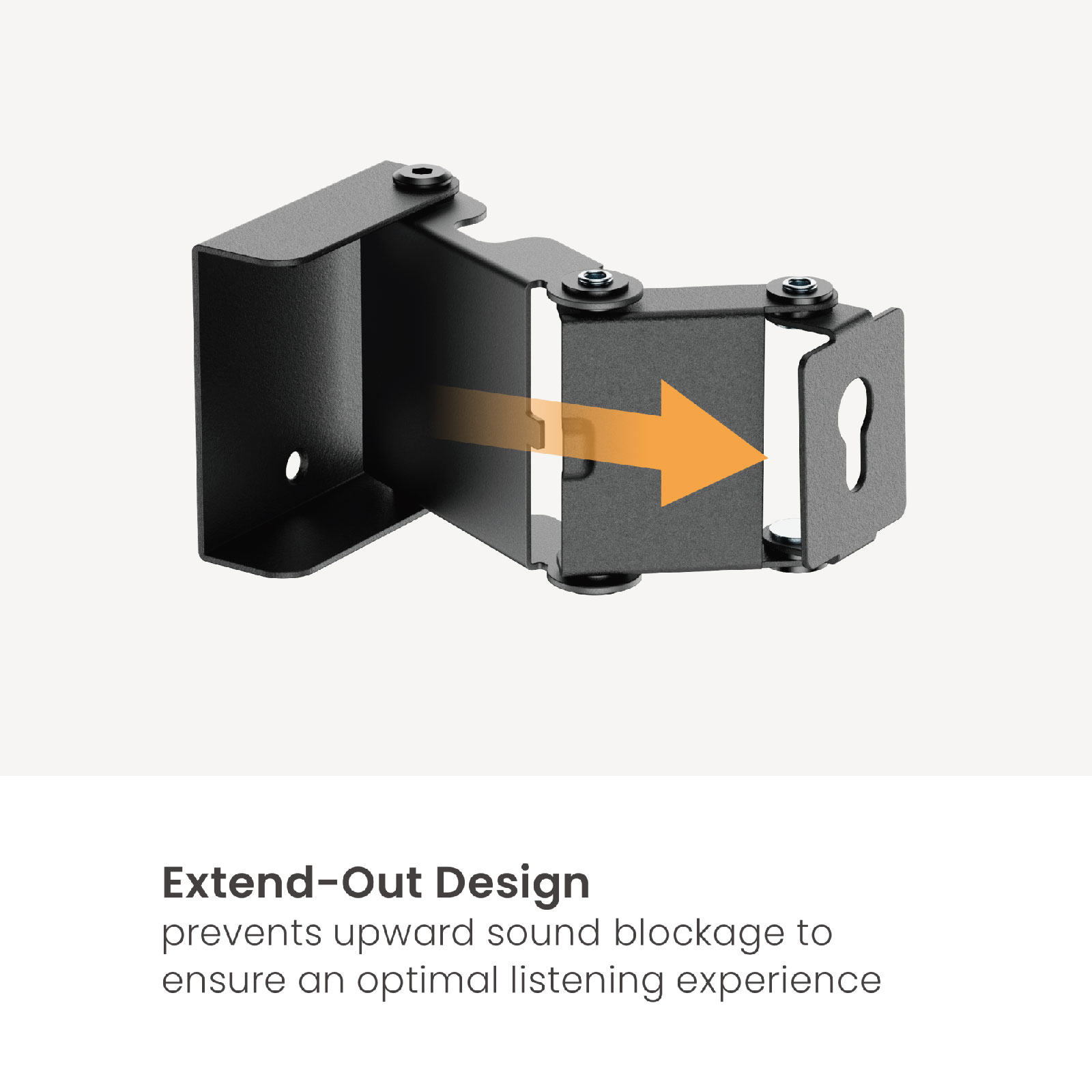

- Extend-out design delivers full Dolby Atmos immersion

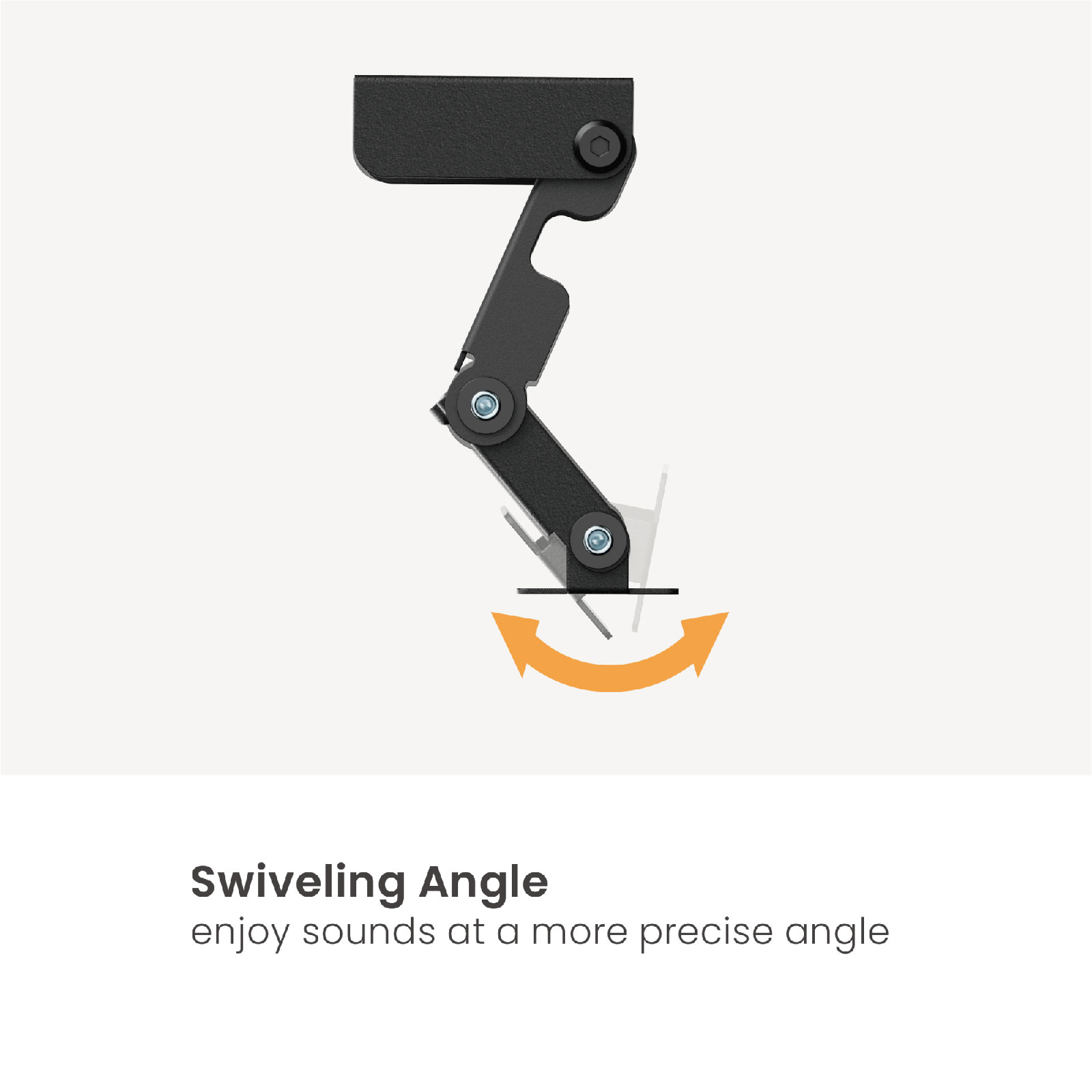

- Swivel adjustment for optimal listening experience

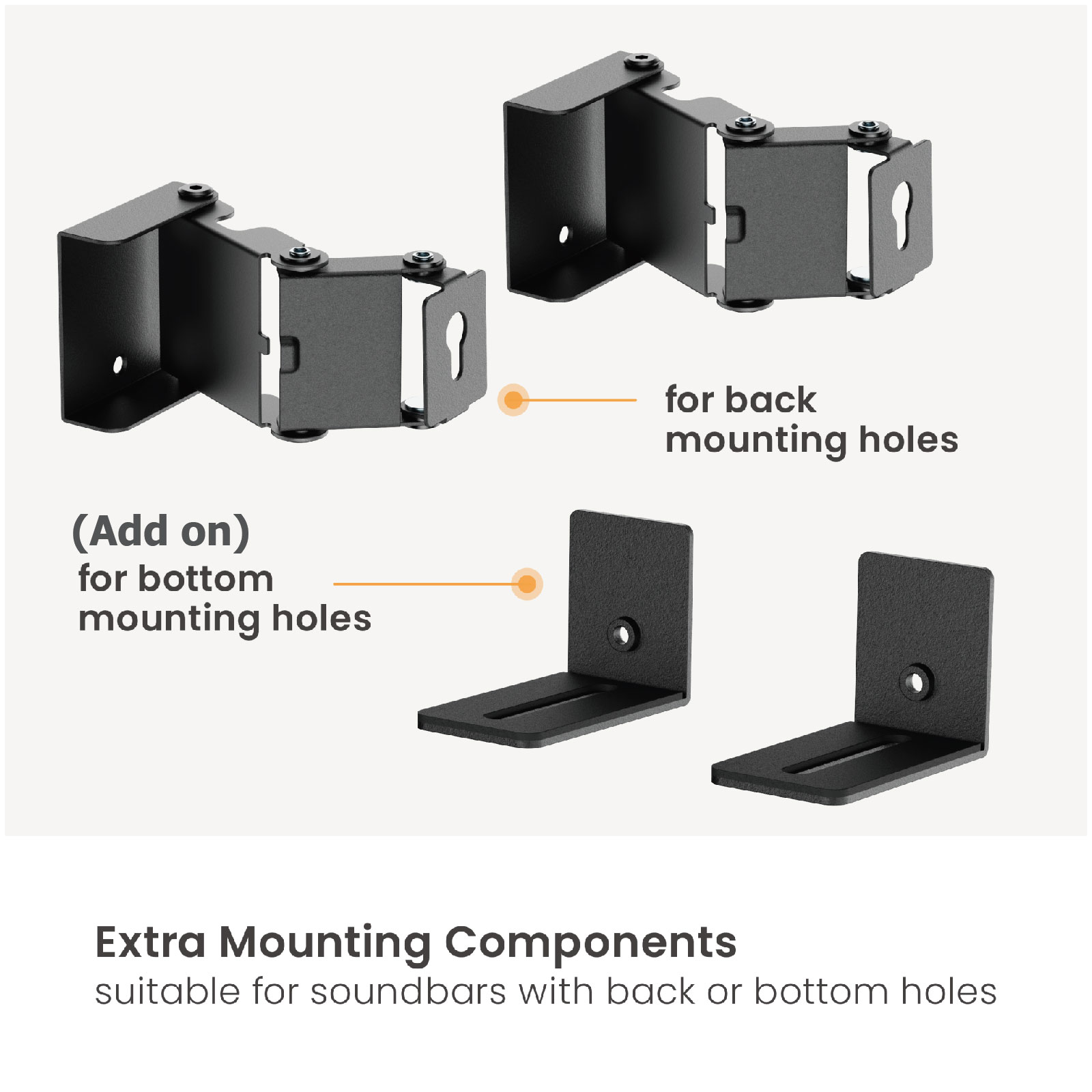

- Suitable for most soundbars with back or bottom mounting

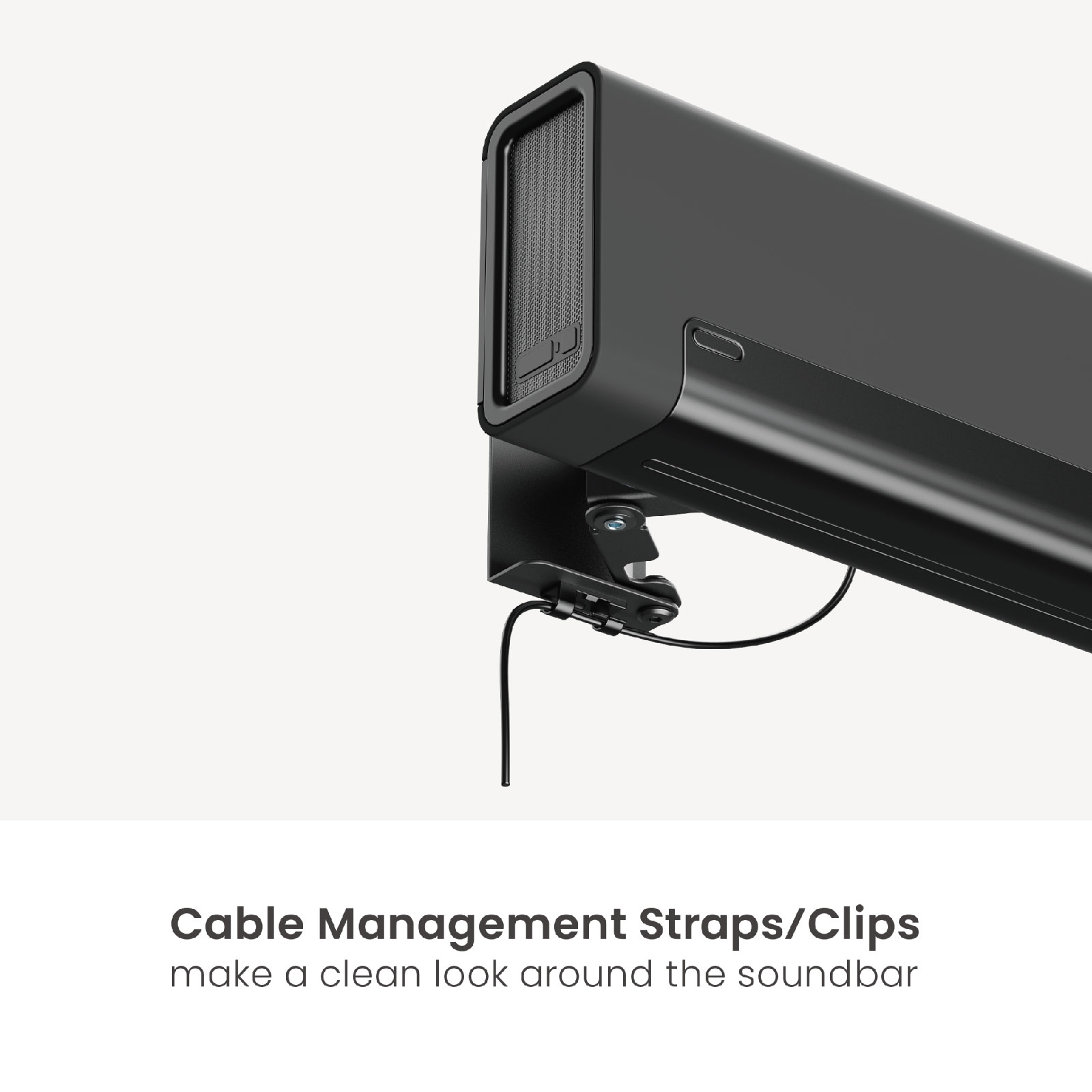

- Cable management
- Support weight up to 22lbs/ 10kg




TECHNICAL
DATA
|
Type |
Wall mount |
|
Material |
Steel, Plastic |
|
Surface Finish |
Powder coating |
|
Loading Capacity |
22lbs/ 10kg |
|
Extend-out Depth (Wall
Mount) |
32 ~ 142mm |
|
Swivel Range |
-8° ~ +8° |
|
Cable Management |
Yes |
|
Installation |
Double stud, Solid wall mounted |
|
Mounting Base
Dimension (WxH) |
68x77 mm |
|
Recommended Soundbar
Holes Distance |
200 ~ 800 mm (in between) |
|
Compatible Screw Mounting |
Back, Bottom |
|
Screw Mounting Size |
M4, M5, M6 |
|
Depth Allowance
(Bottom Mounting) |
45 mm |
|

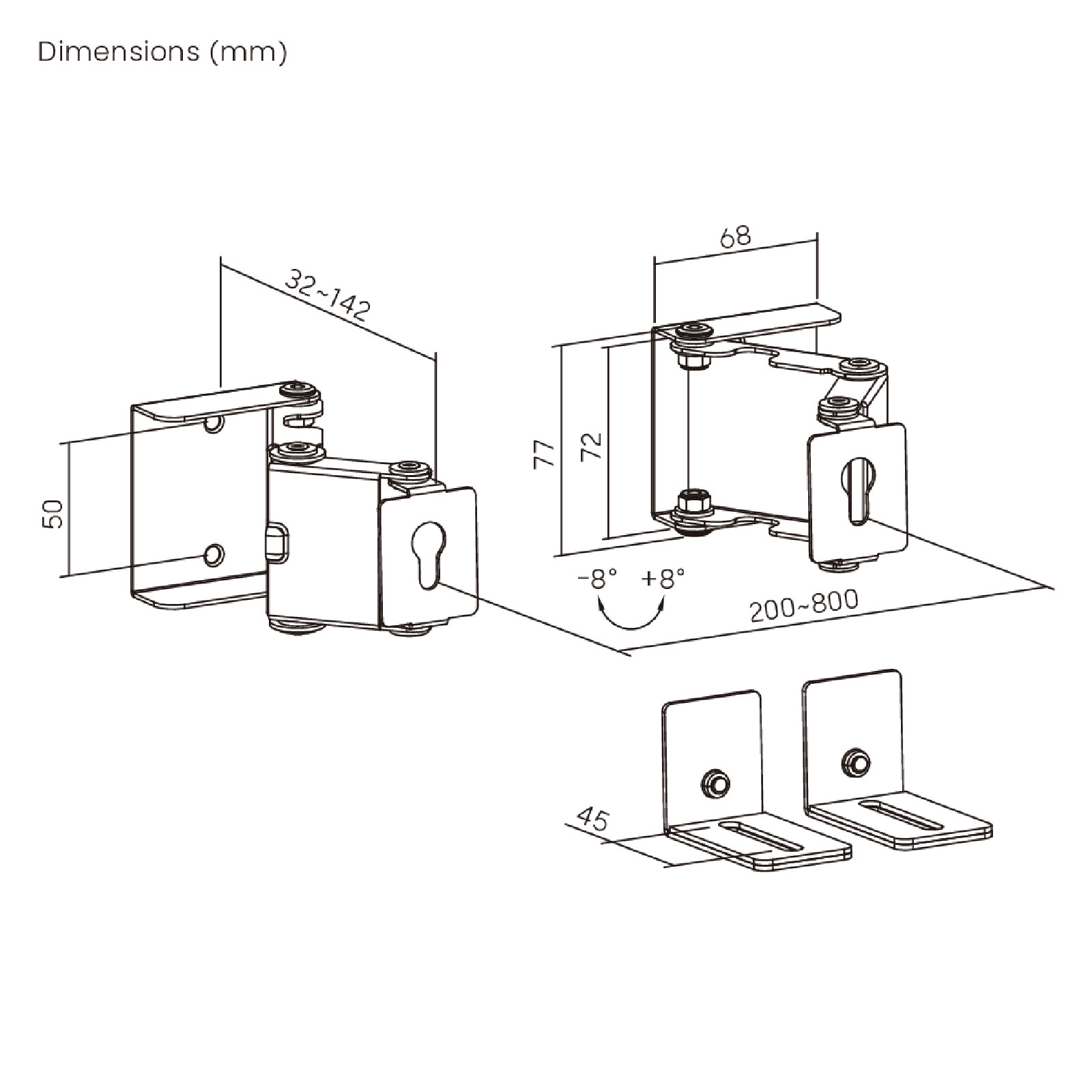

Dimension (Product),
Extend out x Base |
(32~142) x 68 x 77mm *each |
|
Weight |
Approx. 1kg |

Package
includes:

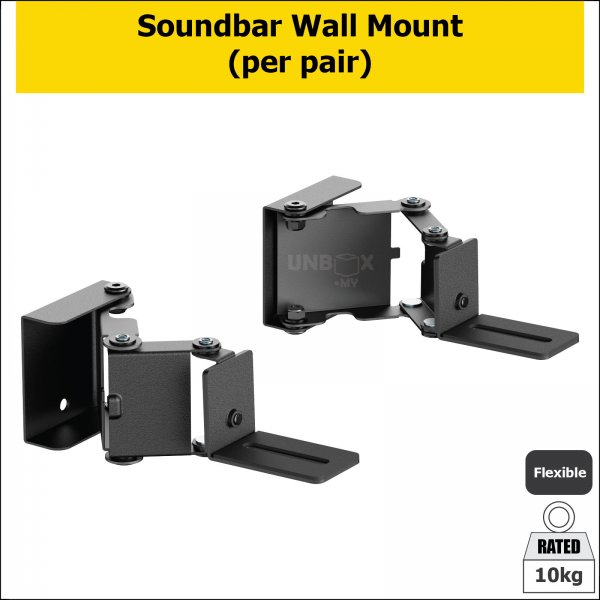

1-pair Soundbar wall mount, with screws & fittings
*1-yr,
strictly for manufacturing defect only (exclude hairline or paint finishing)
