Design for accommodate modern meeting, while display
panels are usually for interactive presentation and idea conveying across

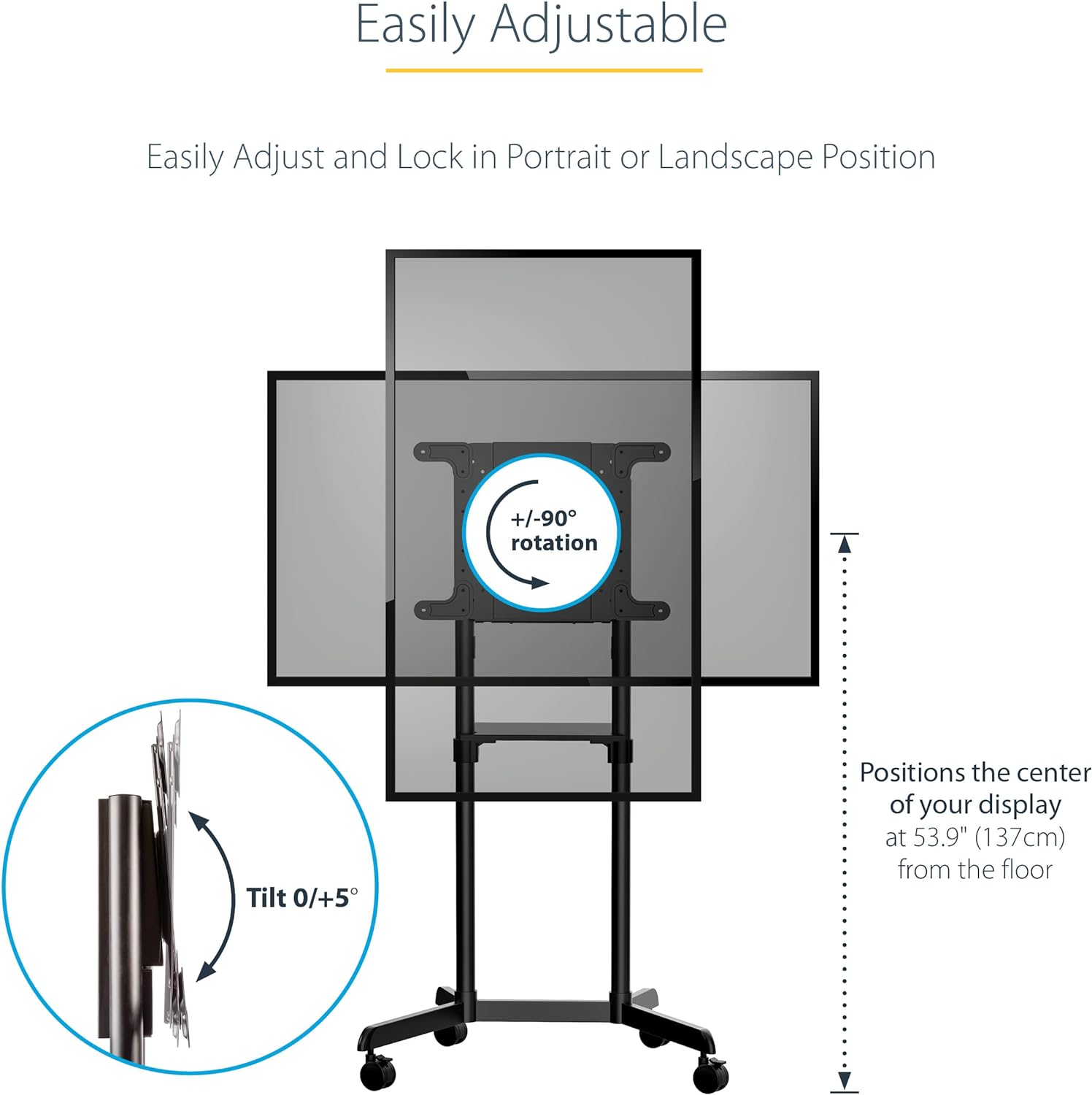

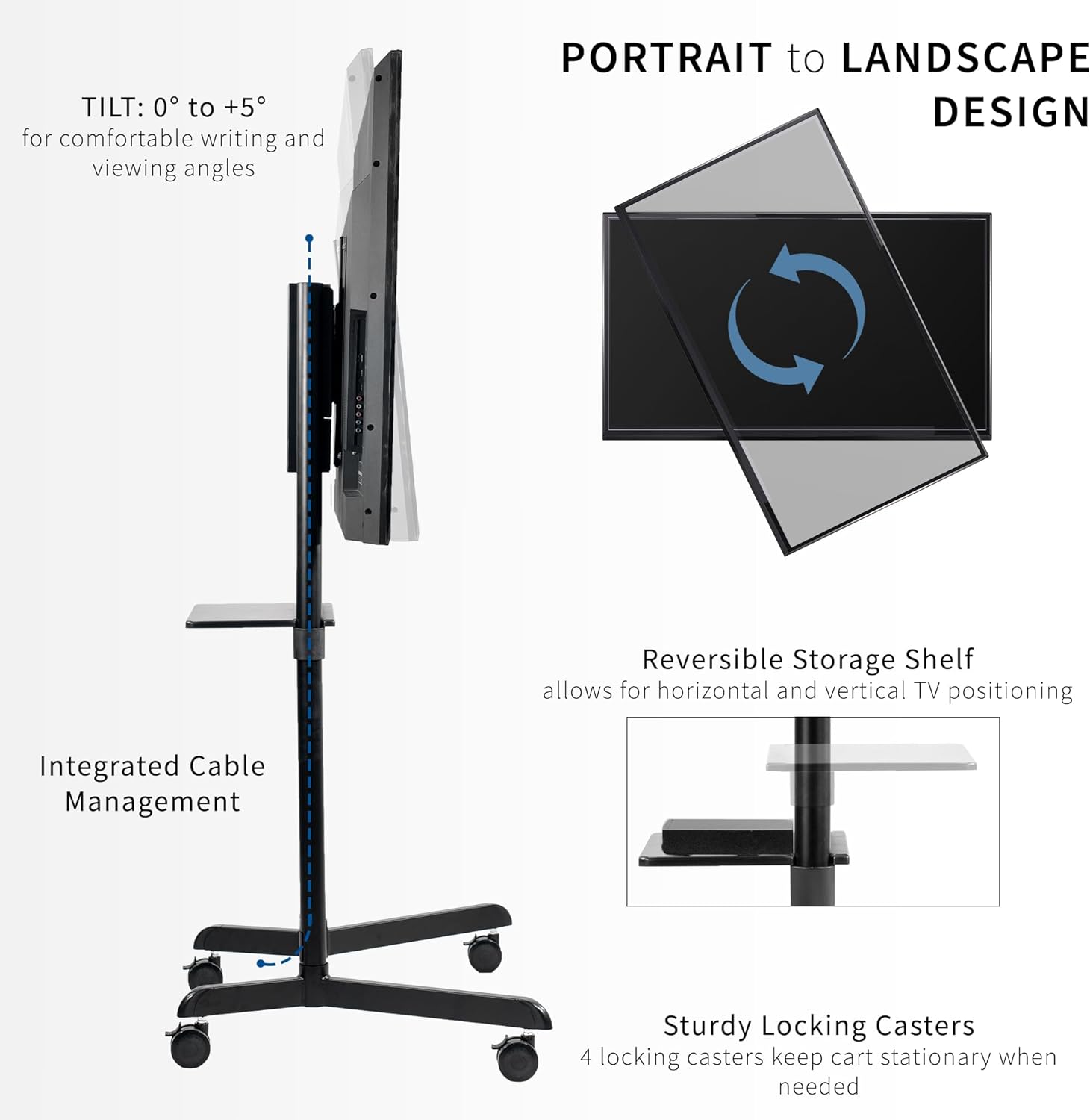

different media, the TTV11-46TW is featuring rotational mechanism which allow
turning in between landscape and portrait viewing (or horizontal-vertical). 5°
angled tilting reduce glare whilst providing user an ergonomic writing posture

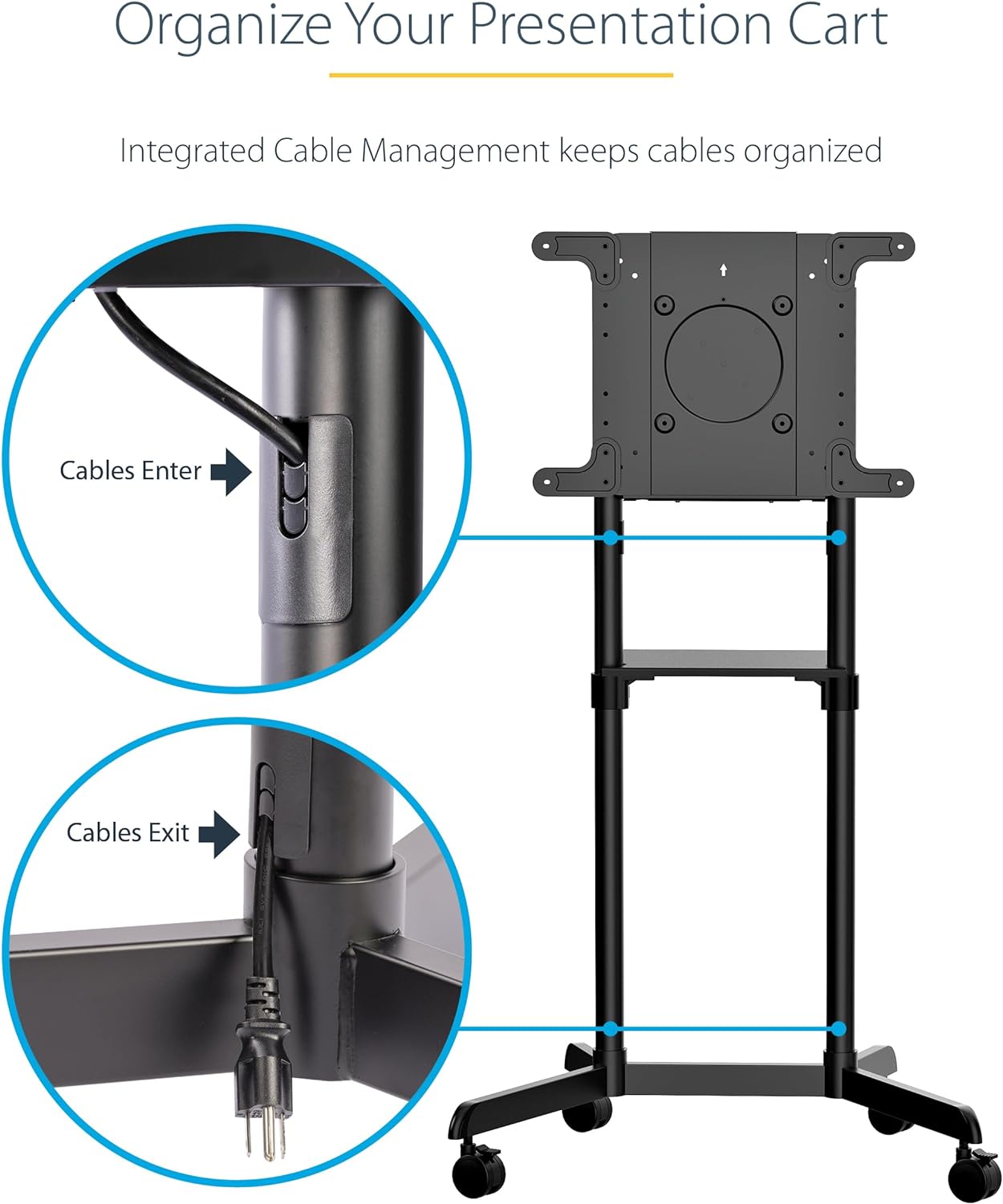

on interactive panels. Hidden compartment available for power strip and cables
can be aligned neatly inside the pole. A multipurpose shelf is handy for the
presenter!
PRODUCT
HIGHLIGHTS
- Flip in between landscape or portrait layout
- 5° angled tilting

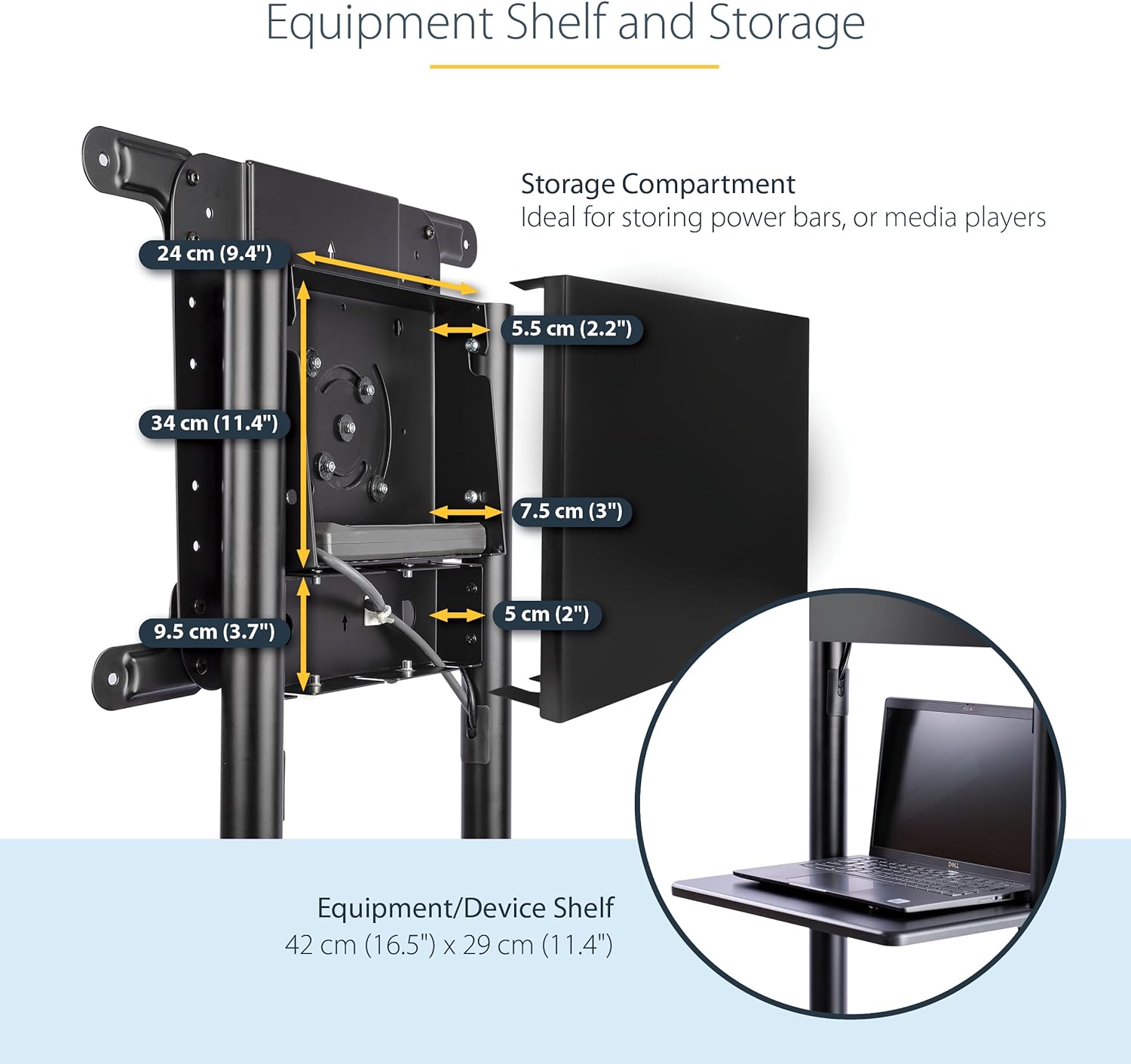

- Hidden storage for power strip, media player, etc
- Cable management
- Multipurpose shelf
- Smooth and quiet PU swivel locking castors
- Support display panels’ weight up to 154lbs/ 70kg
TECHNICAL
DATA
Type |
Cart/ Trolley |
Material |
Steel, Plastic, MDF
& Melamine |
Surface Finish |
Powder coated |
Recommended Screen
Size |
37” – 70” |
Loading Capacity
(TV) |
154lbs/ 70kg |
Loading Capacity
(Shelf) |
11lbs/ 5kg |
VESA Standard (mm) |
200x200, 300x300, 350x350,
400x200, 400x400, 600x400 |
Tilt |
0°~+5° |
Rotate |
0°~+90°
(Landscape-Portrait) |
Adjustable TV Height |
No |

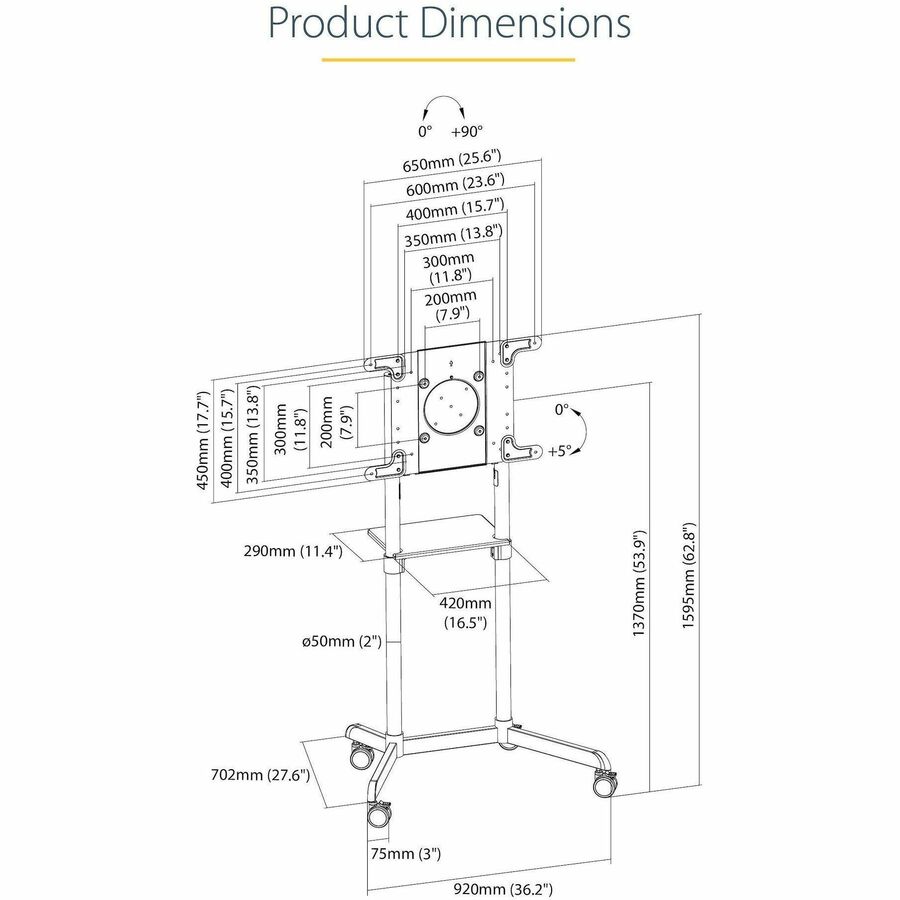

Dimension (Product),
Footprint x Height |
920 x 702 x 1595 mm |
Dimension (Package) |
102 x 86.5 x 13.5 cm |
Weight |
Approx. 25.5kg |
Package
includes:
1 x TV Trolley Stand, with screws & fittings
*1-yr,
strictly for manufacturing defect only (exclude hairline or paint finishing)
NOTE:
Kindly check the VESA specification and weight of your TV before placing order.
