Brateck PRB-18M Universal Projector Bracket Mount

The PRB-18M is a universal ceiling mount for projectors up to 13.5kg/29.7bs. The tilting ceiling plate is designed for flat and sloping ceiling application. It offers multidirectional positioning with four adjustable support arms that can fit a wide range of mounting holes. The retractable aluminum column provides height adjustment for optimum viewing pleasure. This projector mount is perfect for use in classrooms, boardrooms, hotels, bars and restaurants.

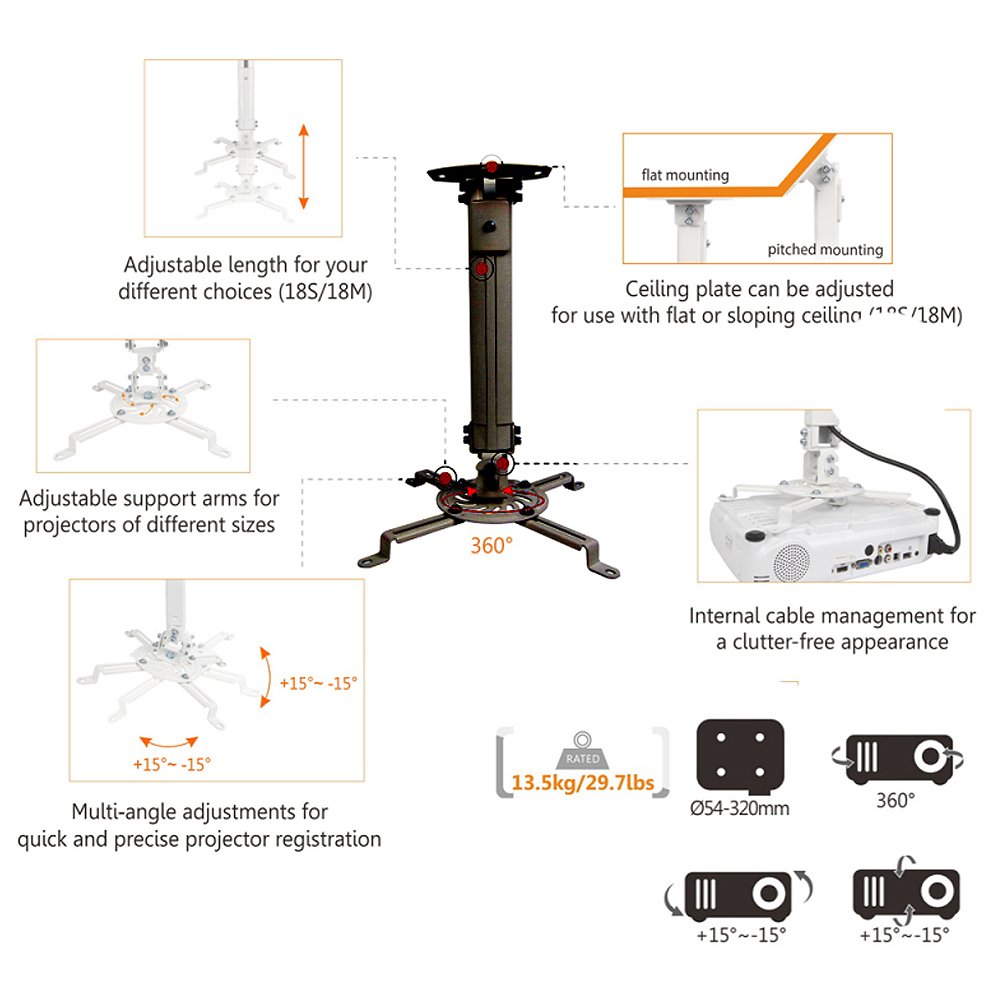

PRODUCT HIGHLIGHTS:

- Universal for ceiling installation

- Adjustable length

- Flexibility of ceiling plate for installation on flat or sloping ceiling

- Adjustable support arms

- 360°rotation and +/-15°tilting allows maximum viewing ability

- Wider mounting range from diameter 54mm ~ 320mm

- Internal cable management for a clutter-free appearance

- Withstand projector weight up to maximum 13.5kgs

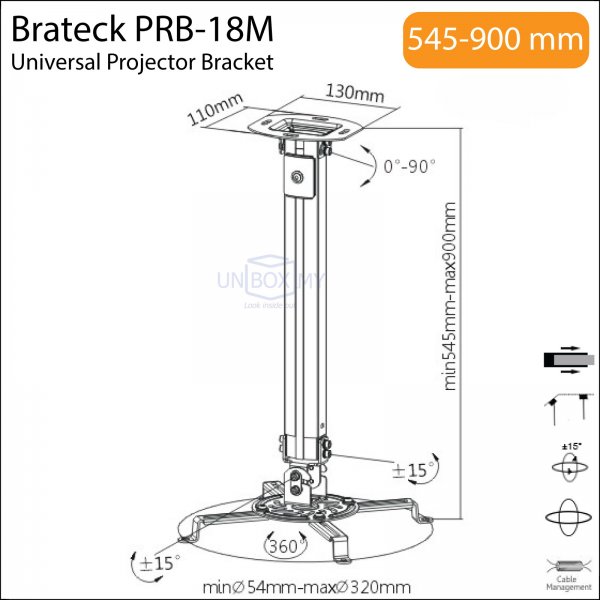

Technical Data

Type	Ceiling
Mounting Pattern	Universal
Material	Aluminum, Steel
Rated Weight Capacity	29.7lbs/ 13.5kg
Tilt	±15°
Swivel	±15°
Rotate	360°
Profile	545-900mm
Dimension (Product)	320x320x900 mm
Dimension (Package)	51x15x9 cm
Weight	Approx. 1.6kgs



Package includes:

1 x Brateck PRB-18M Universal Ceiling Projector Bracket, with fittings



WARRANTY:

*1-month, strictly for manufacturing defect only
