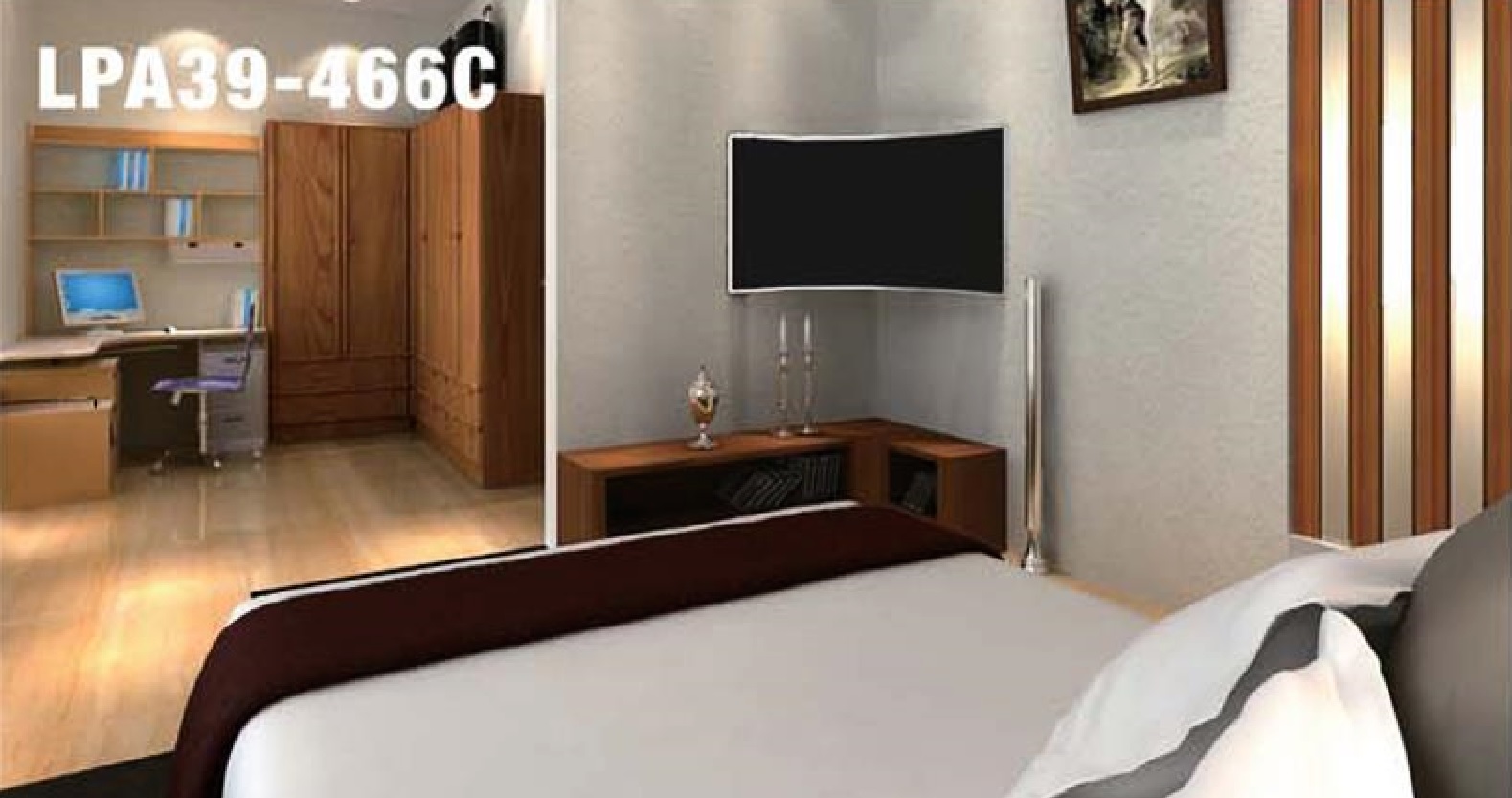

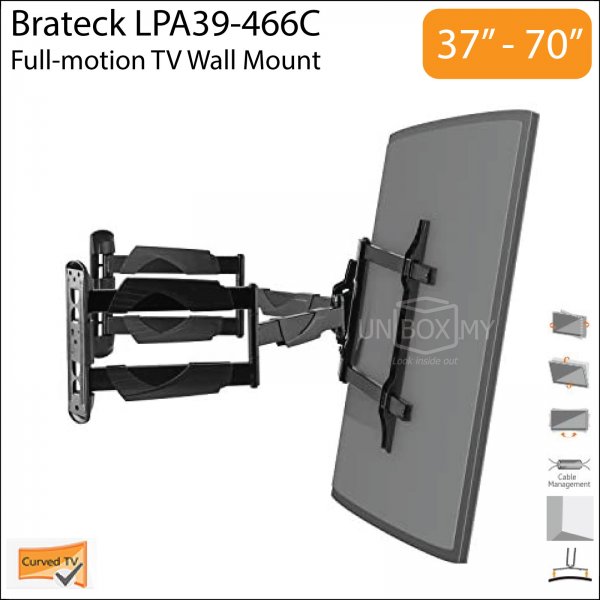

The model LPA39-466C has a unique design that is perfect
for placing your curved/flat panel TV against two walls in the corner of the
room. This mount has two separate wall plates for installing the unit onto
different surfaces. It is compatible with most 37"-70" curved/flat
panel TVs up to 45kg/99lbs. Tilt, swivel, extend and level your TV without the
need for tools. This pre-assembled arm comes complete with integrated cable
management and decorative covers to ensure an elegant and tidy look. The
LPA39-466C is compatible with VESA hole up to 600x400.
PRODUCT
HIGHLIGHTS
- Swiveling arm offer maximum viewing flexibility
- Freely tilting allows easy TV angle adjustment
- Built-in level adjustment ensures perfect positioning
- Support both curved and flat panel TVs
- Perfect for mounting your TV in a corner
- Slight bended mounting plate are closer to the curved TV
- Integrated
cable management system keeps cables organized and protected
- Withstand TV weight up to 99lbs/ 45kg
Technical Data
Type |
Wall |
Function |
Full-motion |
Mounting
Pattern |
Universal |
Material |
Aluminum,
Steel, Plastic |
Thickness |
3.0
mm |
Surface
Finish |
Powder
Coating |
Recommended
Screen Size |
37”
– 70” |
Installation |
Solid
wall, Double stud |
Rated
Weight Capacity |
99lbs/
45kg |
Max
Hole Pattern |
610x410
mm |
VESA
Standard (WxH) |
200x200,
200x400, 300x300, 400x400, 400x600 |
Tilt |
-15°~+5° |
Swivel |
-60°~+60° |
Level
Adjustment |
-3°~+3° |
Cable
Management |
Yes |
Curved
TV Available |
Yes |
Pipe
Size |
40x20x1.5 mm |
Dimension |
707x434x91 mm |
Weight |
Approx. 9kg |
Package
includes:
1 x Brateck LPA39-466C TV Mount, with fittings
WARRANTY:
*1-month, strictly for manufacturing defect
only
NOTE:
Kindly check the VESA specification and weight of your TV before placing order.
*Statement taken from www.vesa.org
