LI-MOUNT PMS-65B Universal Projector Bracket Mount

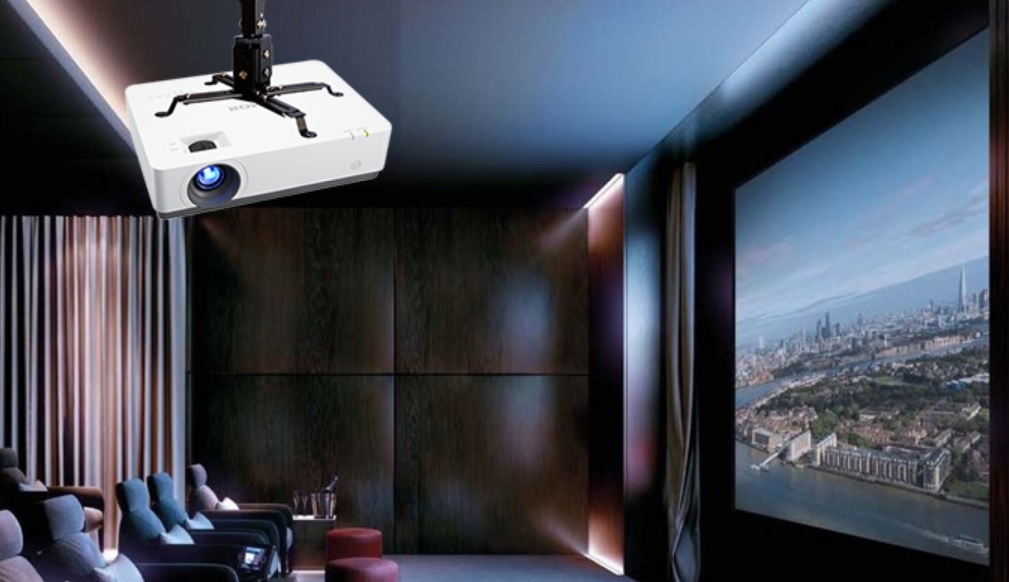

The PMS-65B is a solid steel projector mount that suitable for most projectors up to 6kgs. The adjustable arms reach diameter of 315mm which fit mostly portable projectors with either 3 or 4 screw holes. The innovative design allows for multiple setup profile, include typical ceiling installation, short-profile ceiling installation, wall installation and floor-projection setup. Extendable pole is an installer-friendly feature and flexible for installation at most places such as schools, meeting rooms, exhibition area, etc.

PRODUCT HIGHLIGHTS



- Solid steel structure with coated/ sandblasted surface

- Suit for most projectors

- Adjustable height/ length

- Multiple angle adjustment for optimum installation

Technical Data

Type	Wall/ Ceiling
Mounting Pattern	Universal
Material	Steel
Finishing	Coated/ Sandblasted
Loading Weight Capacity	6 kgs
Tilt	Approx. -15°～＋15°
Swivel	Approx. -8°～＋8°
Mount Diameter	225~315 mm
Height/ Length Adjustment	430-650 mm
Dimension (Product - Ceiling), LxW	650x315 mm (Max.)
Package Dimension (LxWxH)	32x12x6 cm
Weight	Approx. 1.5 kgs



Package includes:

1 x LI-MOUNT PMS-65B Projector Mount, with screws & fittings



WARRANTY:

*1-month warranty
