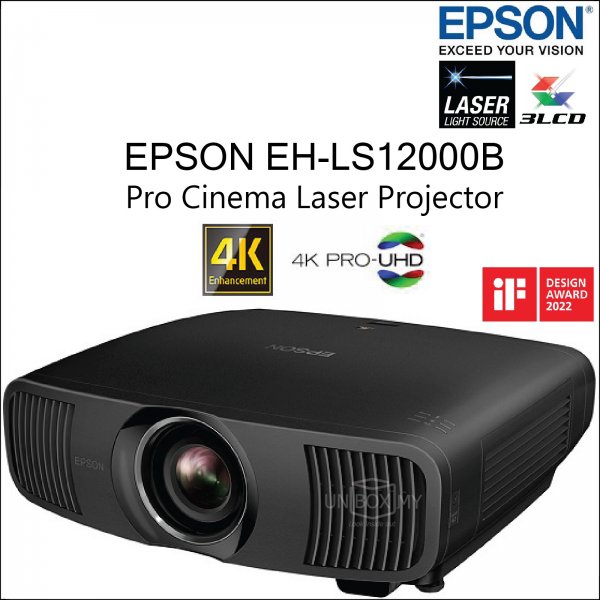

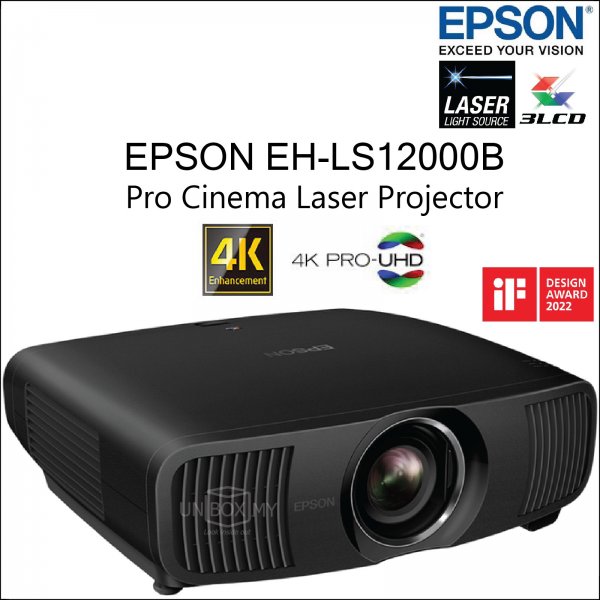

Epson Pro Cinema EH-LS12000B 3LCD Laser 4K PRO UHD Home Theater Projector

Prepare to be Amazed



The ultimate home cinema demands the best in projection. Bring a state-of-the-art cinema experience to your home with Epson’s EH-LS12000B projector. Featuring revolutionary 3LCD laser projection technology, 4K resolution and HDR10+ support^, this high-definition projector delivers phenomenal image quality and colour brightness that elevates any screening to an enthralling cinematic experience. Be prepared to be amazed by jet-black to bright, colour rich quality images for unparalleled realism!



PRODUCT HIGHLIGHTS

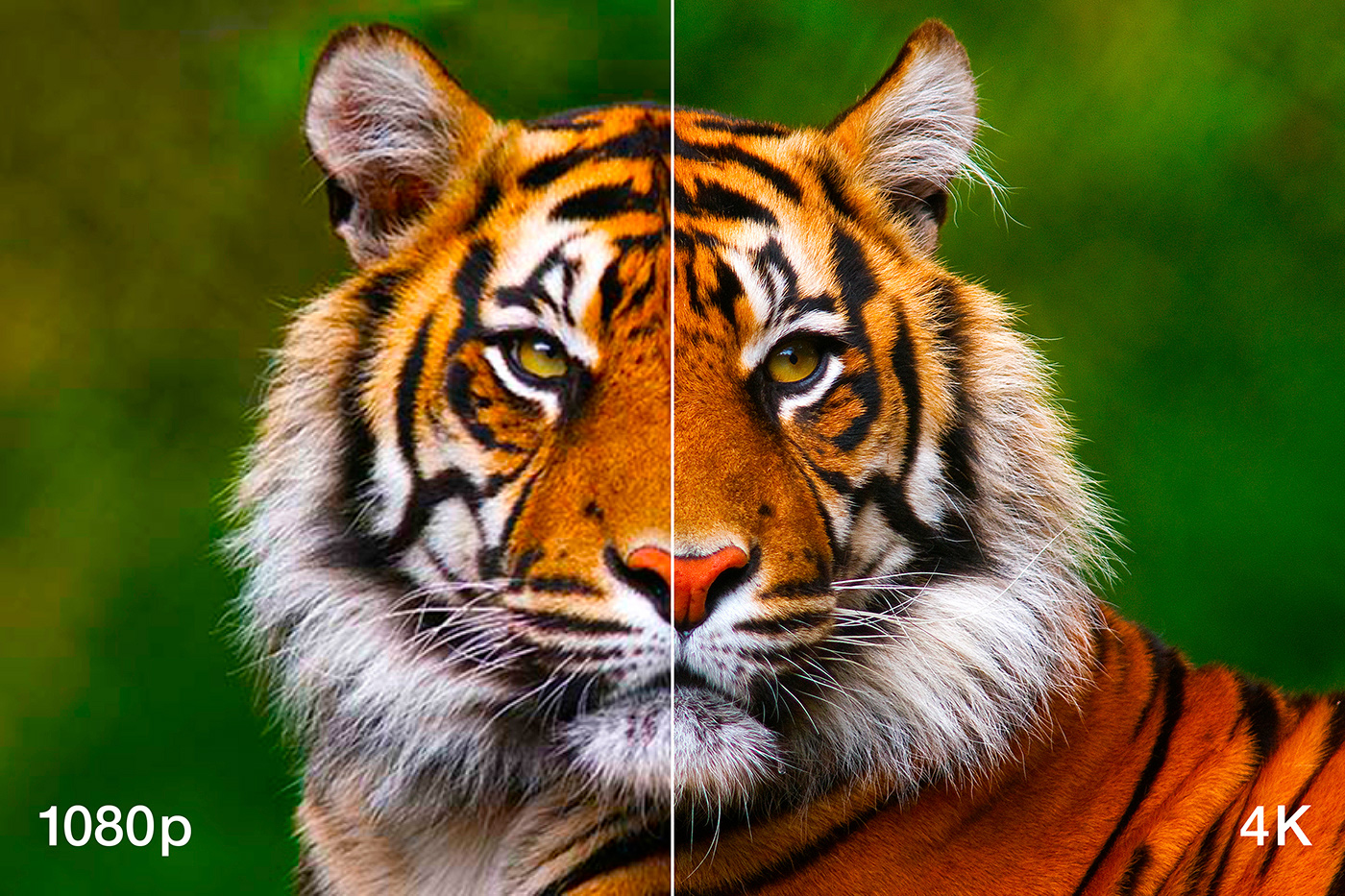

Bring Image to Life

Using Epson's proprietary shift device technology, a high aperture ratio 1080p panel is upscaled to 4K with incredible accuracy and precision to deliver bright 4K images far beyond those seen in competing projectors.

Dedicated 4K Projector Lens

The 4K image created by the panel, light source, and image processing chip is projected as-is across a wide angle. Based on Epson's goal of maintaining a consistent image quality from any angle, all materials and processes are carefully selected and inspected so that you can enjoy pristinely focused images even at high levels of lens shift with power.

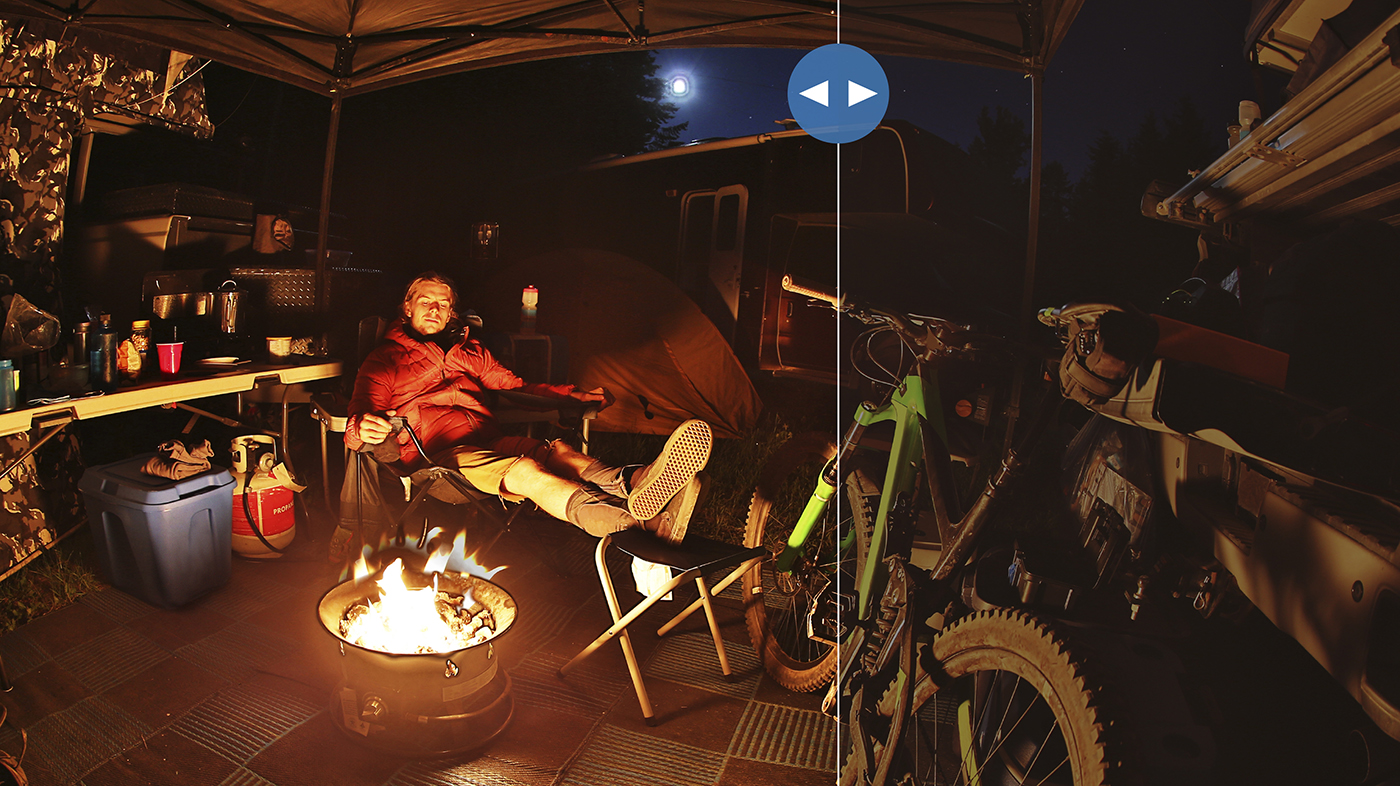

2,500,000:1 High Contrast

A much higher overall image contrast is now possible by applying Scene Adaptive Gamma when processing brightness and contrast. Along with the new Auto Contrast Enhancement, which enhances contract levels of objects. With advanced super-resolution technology, this produces 4K high-definition images that are clearer, more detailed, and more three-dimensional than ever before. The laser optical engine's 2,500,000:1 contrast creates jet-black images which combines with the high-quality image processing chip's contrast-enhancing effects to create a high-contrast image that looks superb in both bright and dark program scenes.

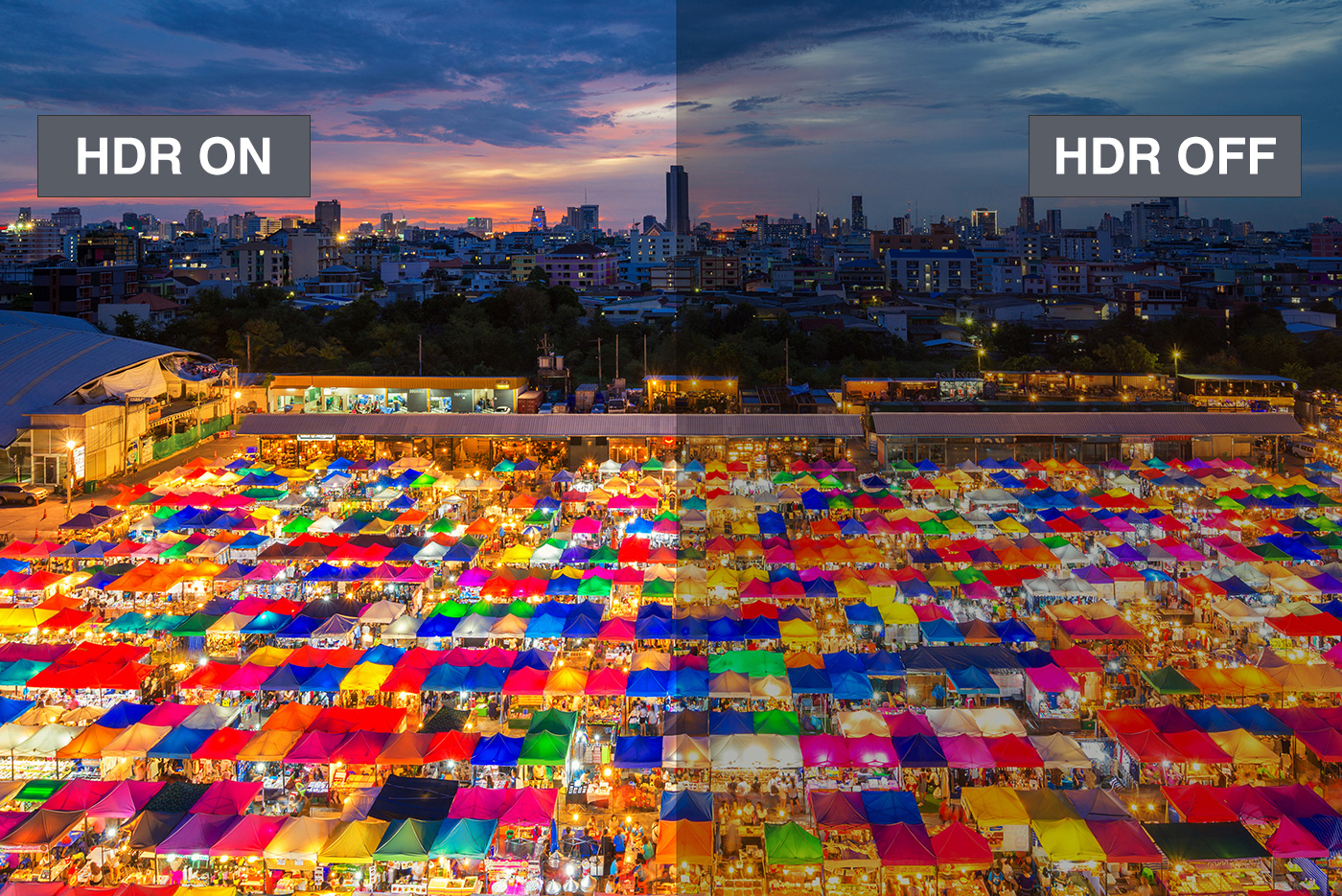

Express More with HDR10+

HDR is a key technology emphasized by filmmakers, that helps convey the visual intent of a film more faithfully. Evolution in HDR technology means that now even subtle shadow tones can be displayed in fine detail.

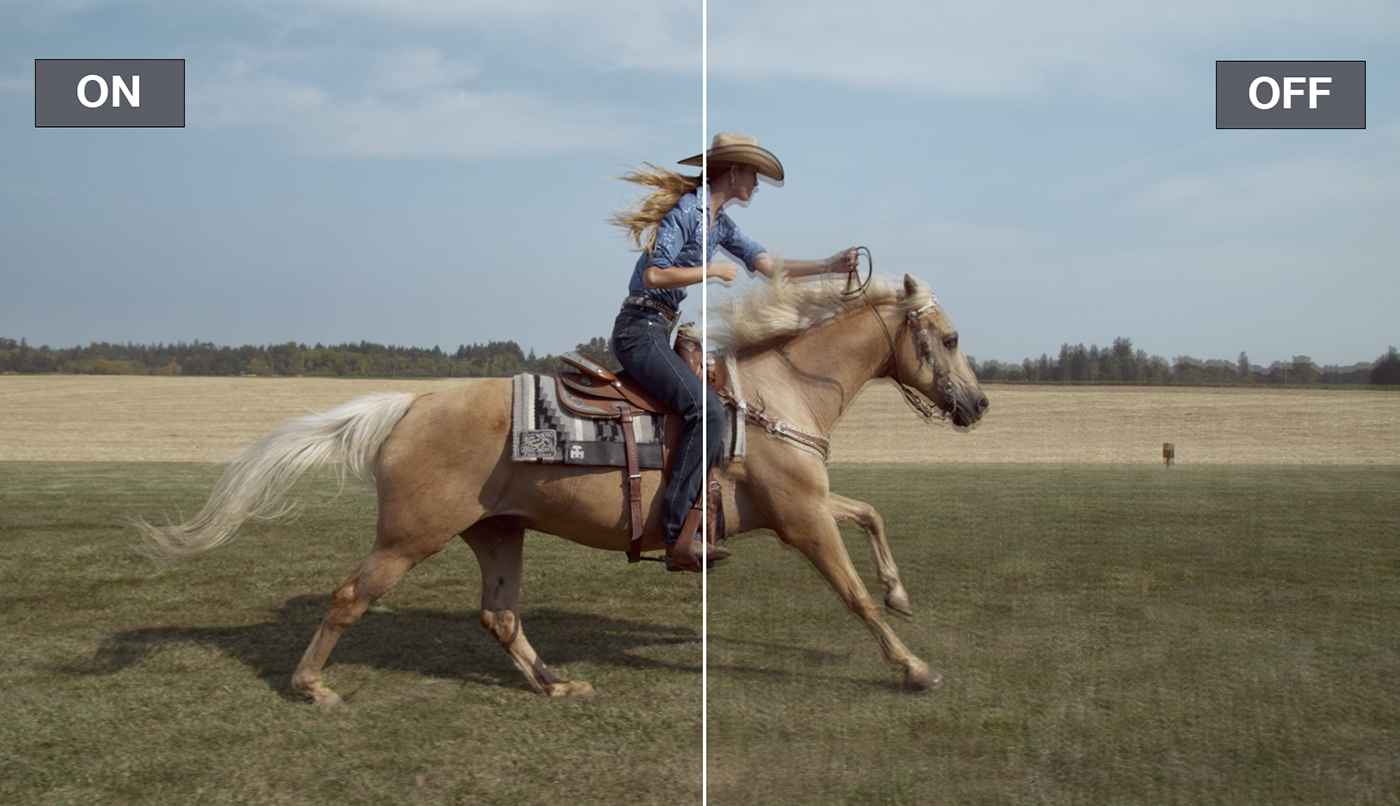

Fast Moving 4K Video Much More Smooth & Clear

As well as current frame interpolation technology, blurring reduction is now improved. Even when watching fast-moving sports or gaming, image contours stay clear, and motion is smooth to bring a fuller sense of realism and dynamism than ever to 4K video.

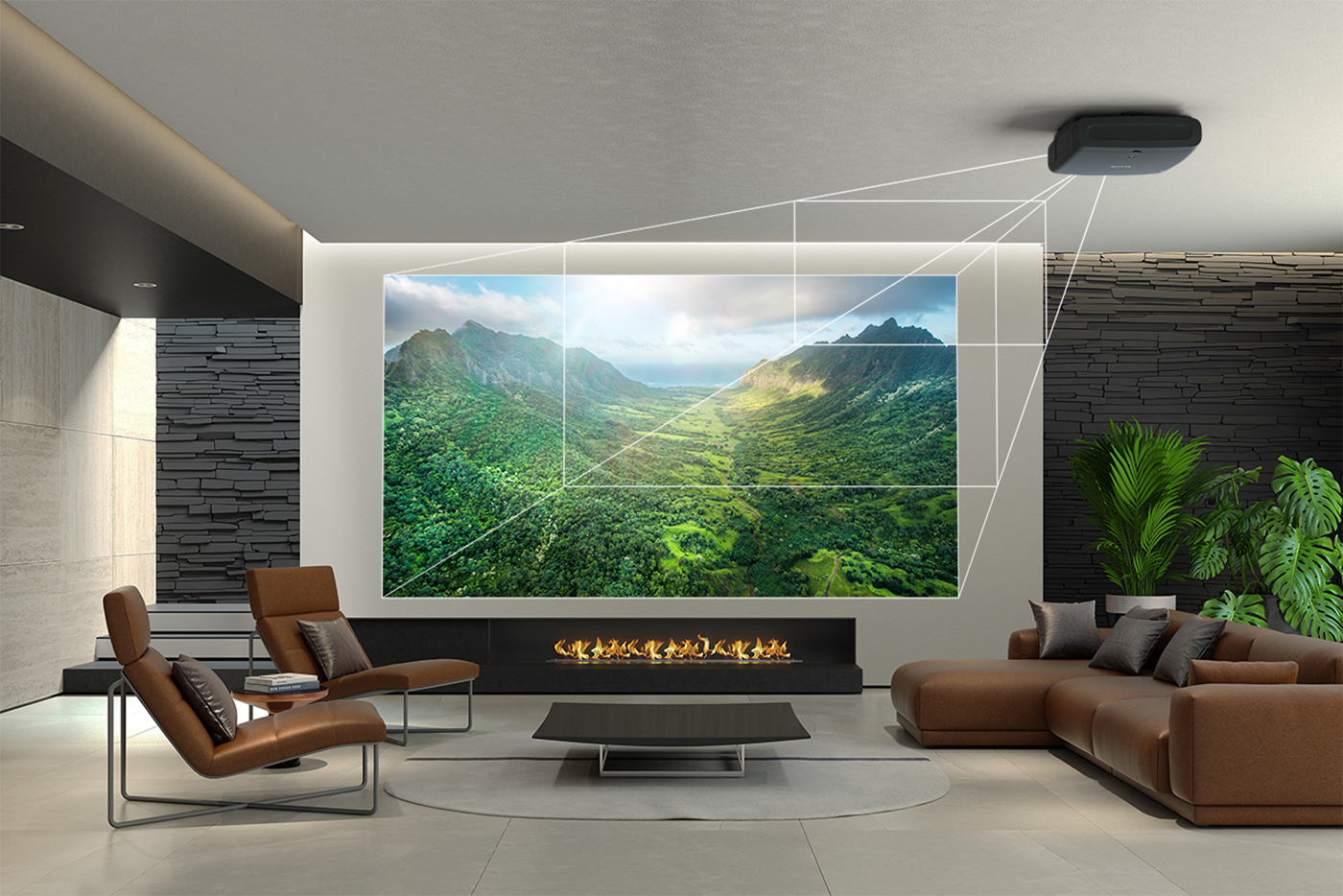

Wide-range of Lens Shift & Zoom Capability

The wide-range powered lens shift (Vertical ± 96.3 %, horizontal ± 47.1 %) and zoom (x2.1) that only a high-end home model provides means the EH-LS12000B can be installed in living rooms as well as dedicated home cinemas. Users can operate the lens shift functions using the remote control, the projector control panel, or control commands. Additionally, a low noise level of 25dB/Light output 75% creates less distraction and allows for a more immersive experience, anytime, anywhere.



TECHNICAL DATA



Model	EH-LS12000B
Projection Technology	RGB liquid crystal shutter projection system
Native Resolution	FHD 1080p (1920 x 1080)
Resolution on Screen (Max.)	4K Pro UHD [1080p (1920 x 1080)*4]
Aspect Ratio	16:9
Lens Type	Zoom (Power) / Focus (Power)
Lens Focal Length	22.5mm - 46.7mm
Lens Zoom Ratio	1 – 2.1
Lens Throw Ratio	1.35 - 2.84 (Wide - Tele)
Lens Shift	Vertical ±96.3% (Powered); Horizontal ±47.1% (Powered)
Keystone	Vertical ± 30° (Manual)
Light Source	Laser Diode
Lamp Life Cycle (Eco)	20,000 hours
Bright Output (White & Color)	2,700 lm
Contrast Ratio	Over 2,500,000:1
Supported Resolution	480i / 576i / 480p / 576p / 720p / 1080i / 1080p / 4Kx2K
Colour Modes	Cinema, Dynamic, Game, Bright Cinema
Screen Size	Screen Size (Zoom: Wide): 50-300” (1.48m – 9.08m) Screen Size (Zoom: Tele): 50-300” (3.13 – 18.99m) 100” diagonal 3.00 – 6.30m

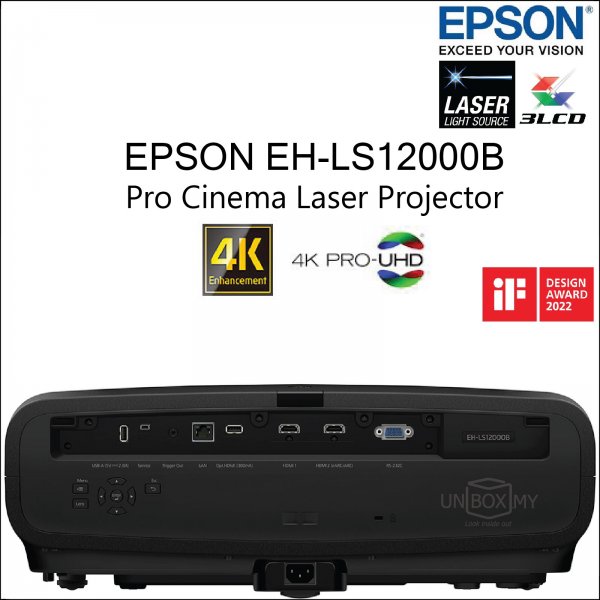

Connectivity	Input:- Digital: HDMI x2 (HDCP2.3; HDMI2: eARC/ARC) USB: Type A x2 (1: Firmware Update, Copy OSD Settings, Save Log or 5V/2A Power Supply; 2: For Opt HDMI and 5V/300mA Power Supply); Type Mini-B (Firmware Update & Copy OSD Settings) Network: Wired (RJ45), Wireless (Optional ELPAP12) Control I/O: RS-232C (D-Sub 9pin), Trigger Out 12V (3.5mm Mini Jack)
Power Consumption (220 - 240V)	Laser On (Normal/ Eco): 302W/ 198W; Stand By (Network Off): 0.4W
Fan Noise (Normal/ Eco)	30dB/ 22dB
Dimension Excluding Feet (D x W x H)	447 x 520 × 169 mm
Weight	Approx. 12.7kgs



Package includes:
1 x Epson EH-LS12000B Projector
1 x Power cable
1 x Remote control (with batteries)

1 x Android TV dongle



WARRANTY:

2-years limited warranty, carry-in

*Bulb warranty is 12-months or 1,000 lamp hours, whichever comes first
